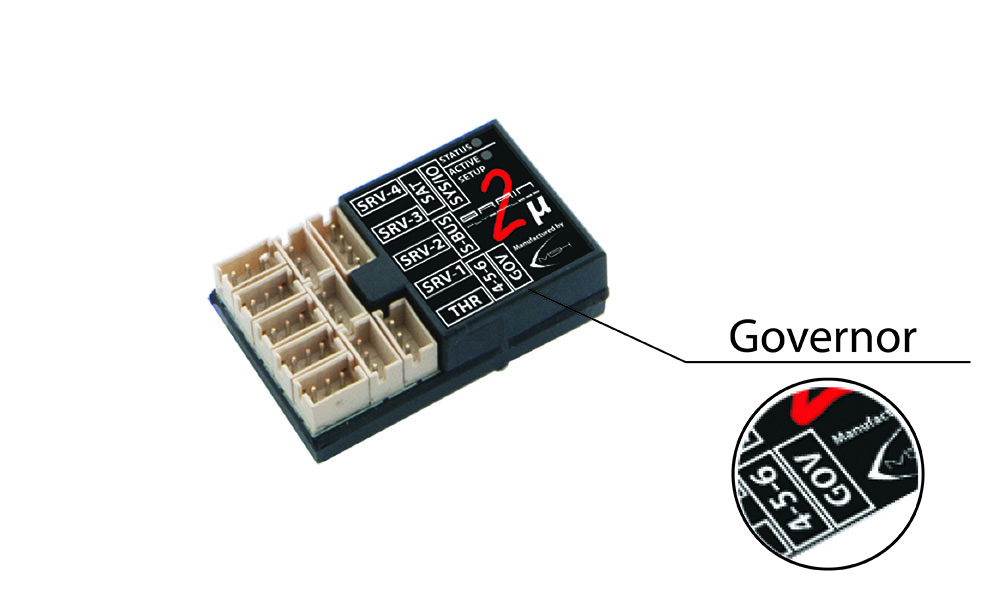

Brain2 Micro flybarless unit

125,00

For very small models, using JST connectors for servo.
Remote USB (included).
No standard receiver connectable.
Only one connector for a DSMX or DSM2 satellite.

Code: MSH51640

In stock

SKU: MSH51640 Category: Tag:

Description

BRAIN2 MICRO SPECIFICATIONS:
Size (width x length x height):
19,3 x 31,7 x 10,7 mm
Weight:
7,4 g
10 Connections:
8 Servo type three pole JST male connectors, with 10 signals connections (7 input and/or 7 output) and 6 servo power bus connections
1 SYS four poles JST connector (GND, TX, RX, +V) capable to power internally the unit or an external accessory (Wireless Dongle)
1 SAT three pole JST connector with 3,3V output (input or output)
8 Servo type three pole JST male connectors, with 10 signals connections configurable for:
7 output (6 PWM + TX on SYS TX ), and/or 9 input (6 single PWM from RX, 1 RPM pulses + SAT1 + RX on SYS TX) and 7 servo power bus connections

Serial input for every receiver Brand with very low latency method:

Spektrum:  New bidirectional SRXL v2 (with telemetry) / Bidirectional SRXL (with telemetry) / Unidirectional SRXL / DSM2 22mS / DSM2 11mS / DSMX 11mS / PPM / Remote RX
Futaba:       S.Bus2 (with telemetry) / S.Bus / PPM
Jeti:              EX-BUS (with telemetry) / UDI / PPM+ / PPM-
Graupner:  SUMD (with telemetry) / SUMO
Multiplex:   SRXL-12 / SRXL-16 + MSB (with telemetry)
FrSky:          S.Bus + Smart.Port (with telemetry) / F.Port (with telemetry) / F.Port2 (with telemetry) / F.Bus (with telemetry) / S.Bus
JR:                X-Bus B
Hitec:          S.Bus
RadioLink: S.Bus
TBS:            Crossfire (with telemetry) / S.Bus / PPM
ELRS:          Crossfire (with telemetry)
FlySky:        i-Bus (with telemetry)
Governor:
For Electric, Nitro, Gasser
Governor rotor speed control range: 800-6500 RPM
Autorotation Bailout function (fast RPM recovery from a failed autorotation manoeuvre)
Telemetry input:
From ESC on electric models:
Castle Creation
Hobbywing
Align
Scorpion
Kontronik
YGE
Spektrum
FrSky
OMP
From Temperature sensors on Nitro / Gasser / Turbine models:
Jeti
Futaba
From RPM Sensors:
All sensor brand
Possibility to monitor separately also the RPM of the tail motor
From Variometer (Altitude, Vertical Speed):
FrSky, Futaba, Robbe, Graupner sensors on Bus
Quality Of Signal (QOS) received:
For all receivers brand
Quality of Servo Voltage input:
For all kind of Power input: ESC BEC, external/separate BEC, 2S Lipos/Li-Ion/Li-Fe/NiCd/NiMh, Backup Power Systems
Telemetry output:
Spektrum, Futaba, Jeti, Graupner, Multiplex, OpenTX, EdgeTX, Ethos, Crossfire, FlySky
Power input:
Between 4,5V to 15V with one or two (redundant) lines from BEC or 2S Li-Po (7.4V) or 2S Li-Ion (7.4V) or 2S Li-Fe (6.6V) or 5/6/7 NiCd -NiMh
Outputs:
6 Servos/ESC outputs. Of which 4 are fully programmable from 50 to 560Hz (also for cyclic control)
Auto Diagnosis at each power on:
With result by LED flashes
With result by initial Swashplate movements
Diagnostic logs:
More than 50 different parameters can be recorded during flights
Vibrations are also logged during flights
More than 50 different types of Events are monitored and automatically logged during flights
Already included “on board”:
Status LED
Parameters setup / regulation:
Via apps in English, Deutsch, Francois, Russian, Chinese, Italian, Spanish (with the possibility to add, edit, share other languages):
Windows
MAC (with emulators)
Linux (with emulators)
Android
iOS
Via “Integrations” menu:
Spektrum
Jeti
Graupner
OpenTX
EdgeTX
Ethos
Crossfire (ELRS / TBS)
Via dedicated transmitters channels (dials):
In addition to the radio channel dedicated to tail gain, up to other three radio channels can be assigned to one of the 51 internal parameters of the unit
Swashplates:
90°
120°
135°
140°
Mounting positions:
Up to 16 different possible mounting positions on the model

Included in the package:

1x Brain2 Micro
1x Remote USB
1x Remote USB/Wireless Dongle adapter cable
1x Cable Futaba female to JST 50mm for serial RX
1x Cable JST to JST 50mm for Spektrum Sat
3x Double-sided adhesive
1x ‘Safety Notes’ leaflet
Please, after purchase, download for free the latest software from “Downloads” section.
Updates can be handled automatically for free by the software after first installation.
Visit the release notes under “info” menu of the software after each update.
