Products

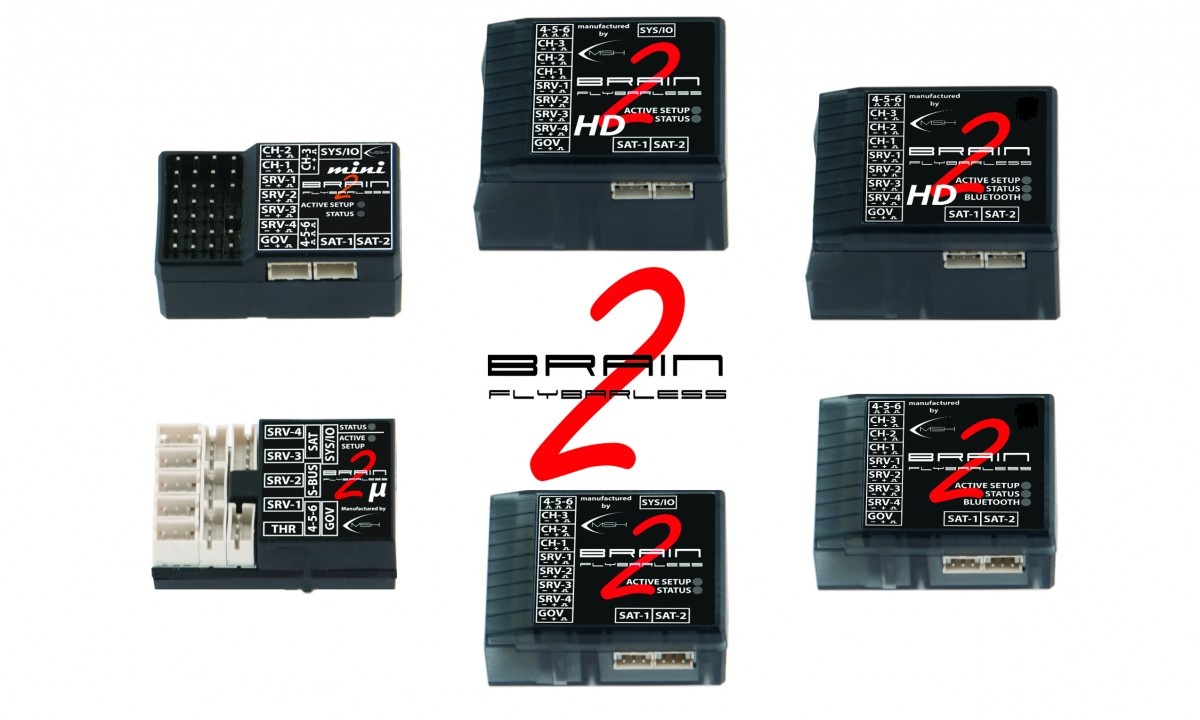

6 VERSIONS

Brain2 family

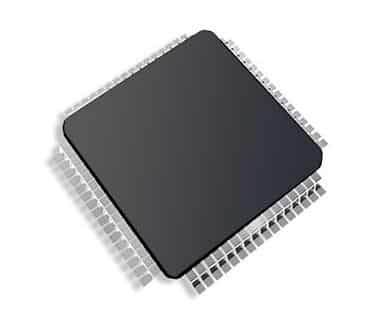

NEW High-performance CPU

Latest generation CPU for Brain2 best performances.

4 times more computing power and 5 times more available memory for firmware than our previous generation of Flight Control Units.

This has also made it possible to add new features right away, such as Flight Logs, Telemetry, etc. and will allow new features to be added over time, making your investment last longer.​

Brain2 CPU image

USB Power Capability

No need to power the model up now to make quick configuration changes, configuration backup, firmware update, view flight logs graphics, view vibrations graph, view Events list, etc. etc.

Just plug in the USB port and the Brain2 powers up, with an integrated diode to prevent powering the servo power bus (no need to take the blades out of the blade holder! No battery discharge!). Quick changes have never been so easy.

USB and SYS sockets are always available for immediate connection to configuration apps are not used for other functions.

Brain2 USB image

NEW MICRO BRAIN 2

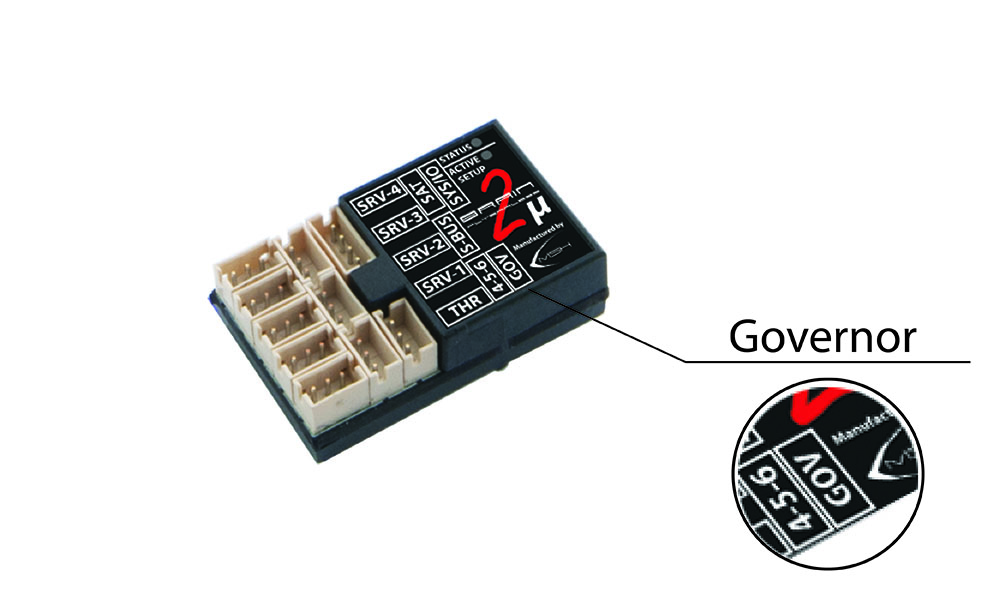

Micro Brain2 (MSH51640) is now complete.

Micro Brain 2 has all the performances of its bigger brothers, including proactive governor, but in an extremely small package, ideal for use in 180 class helis.

Brain2 Micro with Governor connector

INCREDIBLY SMALL FOOTPRINT

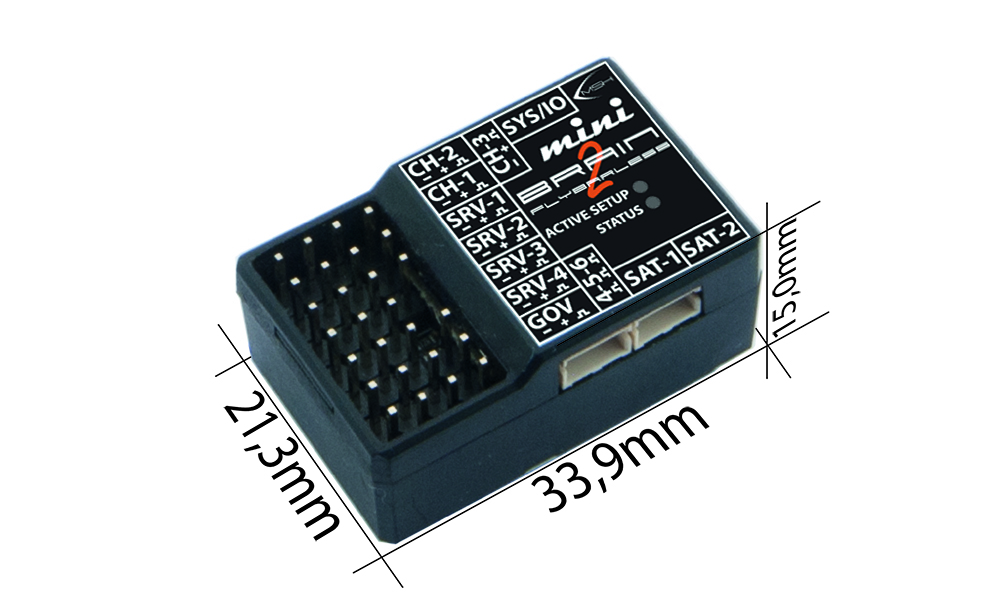

MINI Brain2 (MSH51635) has all the characteristics of the regular Brain2 but in an incredibly small package.

For models of any size. ​Due to the really small size and vertical servo plugs it can be fitted in narrow frame or little class models, without any compromise in performances.

Brain2 Mini dimensions

HEAVY DUTY

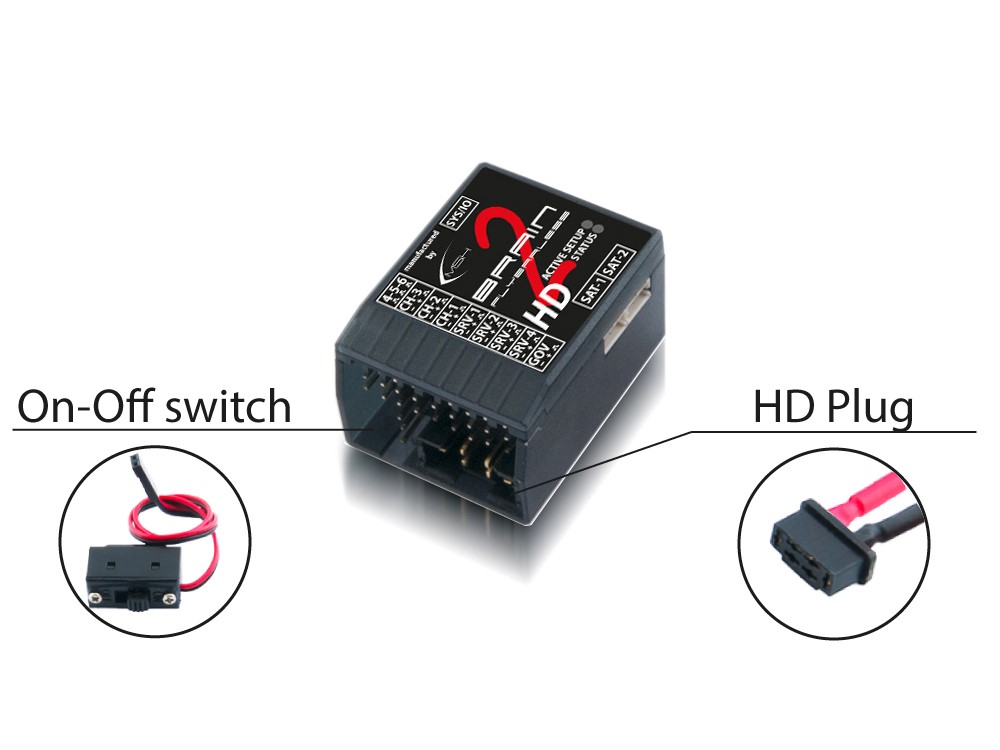

HD Brain2 versions (MSH51632 and MSH51638) can be powered directly from a Lipo or a BEC trough the dedicated connector. An electronic safety switch can turn on or off all your avionics. In case the control switch should experience any failure, it’ll default to ON position.

Brain2 HD option cables image

TRANSMITTER INTEGRATION

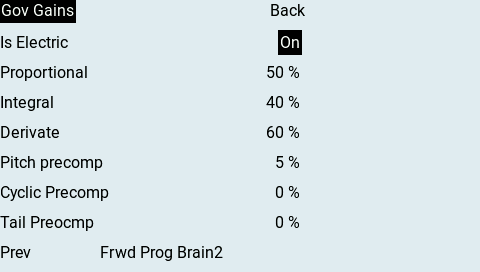

INTEGRATION of Brain2 with all radios with full telemetry allows you to adjust any Brain2 parameter and functions directly through specific menus generated by Brain2 on the transmitter’s screen.

Spektrum

Jeti

EdgeTX / OpenTX

ETHOS

Graupner

ELRS / TBS

Forward Program

Brain2 Spektrum integration screenshot
Brain2 Jeti Integration screenshot

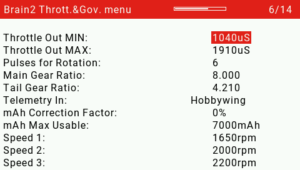

Brain2 EdgeTX/OpenTX Integration screenshot

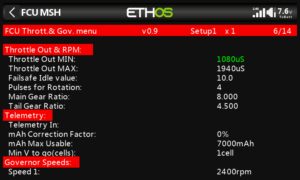

Brain2 FrSky ETHOS Integration screenshot

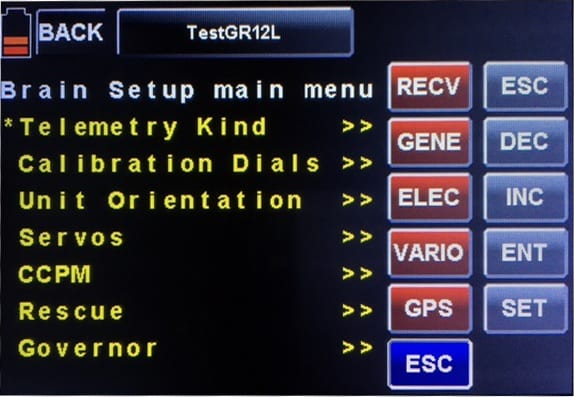

Brain2 Graupner HoTT integration screenshot

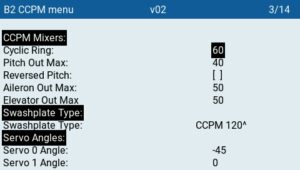

Brain2 ELRS/TBS Crossfire Integration acreenshot
Brain2 ELRS/TBS Crossfire Integration acreenshot

INTEGRATED WIRELESS CONNECTION

Models MSH51630 & MSH51632 of Brain2 can connect WireLess

Units can connect also wireless to a Windows PC, Android or iOS devices. Apps for Android and iOS are available on Google Play and App Store.

Brain2 models with integrated Bluetooth

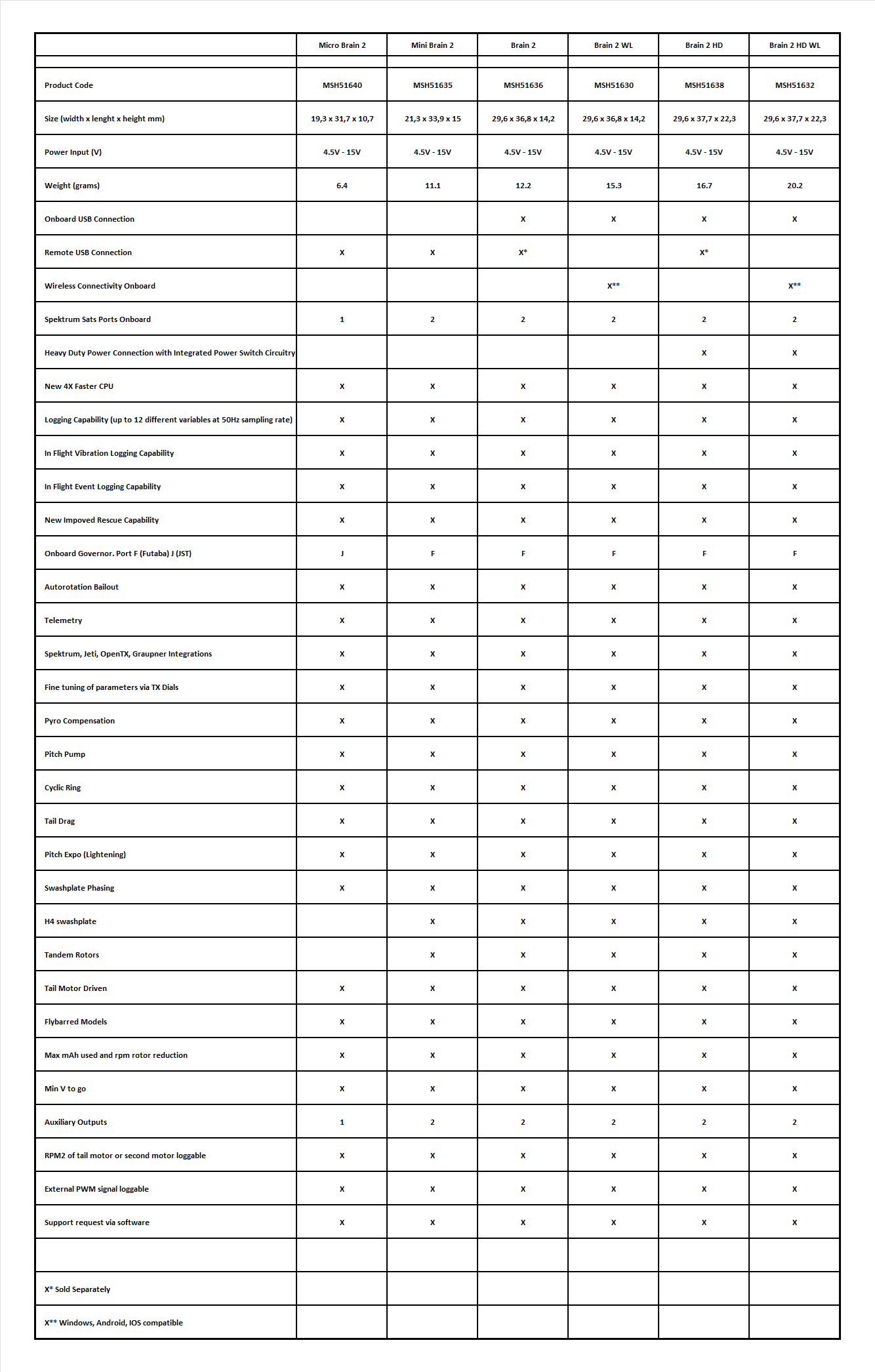

EASY COMPARATIVE BRAIN2 CHART

Brain2 comparative table

LOGS

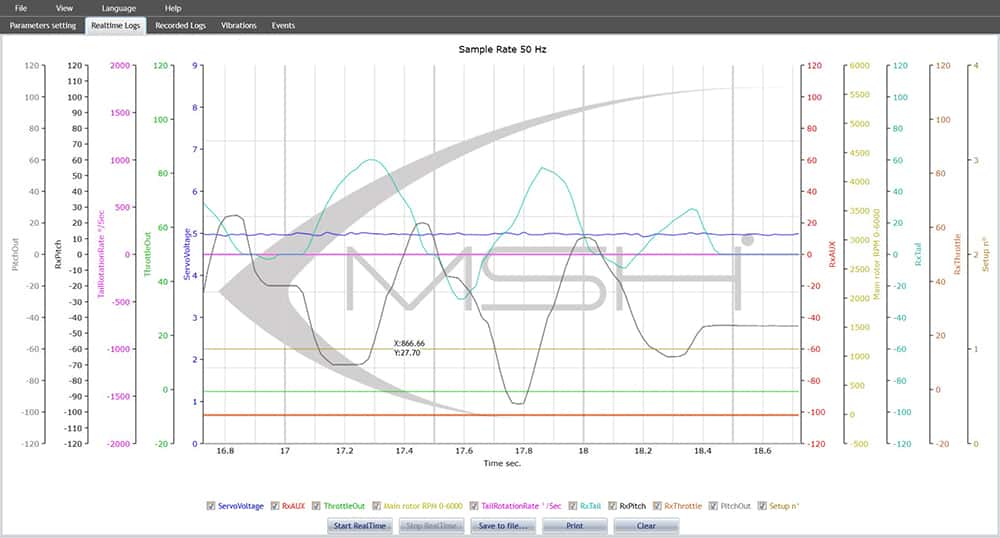

With all Brain2 models it is possible to check all important parameters, both, using the realtime feature or reviewing the recoded data after each flight session. User can select which of more than 50 different parameters to log from a menu, 12 different parameters can be logged at same time, up to 50hz sampling.

Brain2 Logs display screenshot

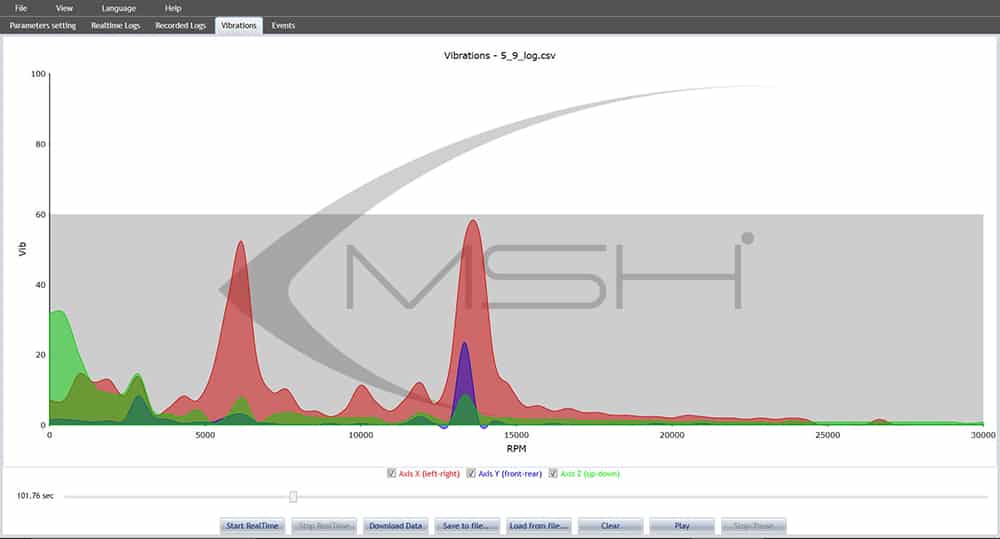

VIBRATIONS ANALYSIS

Vibrations log of all Brain2 units is a useful tool to check model status in flight. Vibration logging helps diagnose any kind of mechanical problems.

Brain2 Vibration analysis screenshot

EVENTS

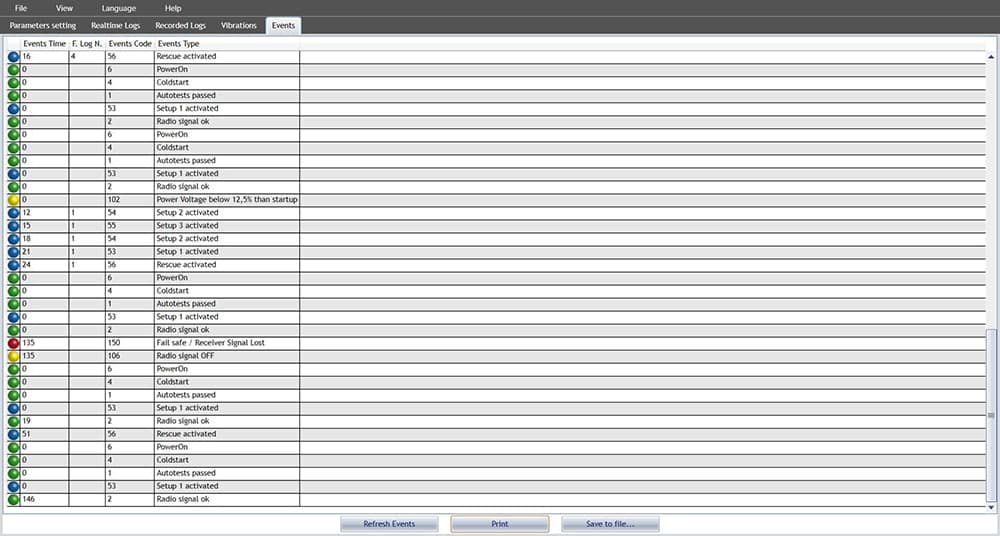

Events are logged inside Brain2 for each flight session and can be reviewed at any time.

Brain2 Events screenshot

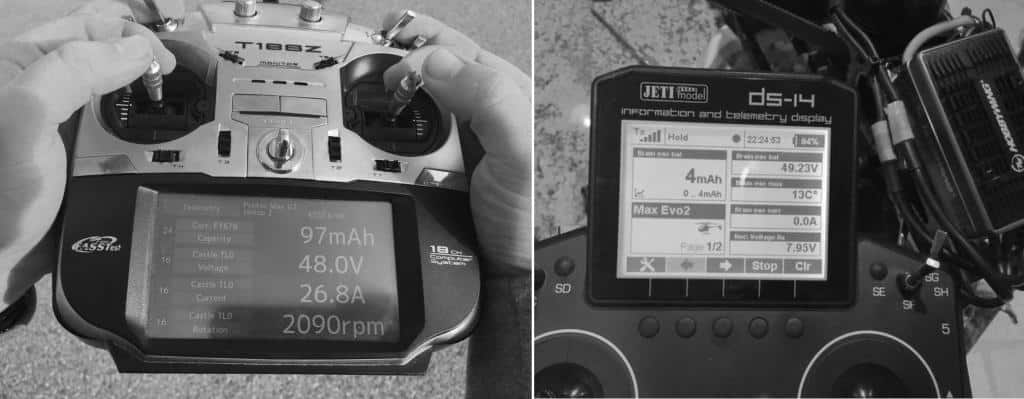

TELEMETRY

Telemetry transmission of the most important data of the Brain2 and / or of the devices connected (RPM sensors, ESC & BEC, temperature sensors, etc.) to your transmitter where you can set acoustic, vibration, voice alarms.

Brain2 telemetry images

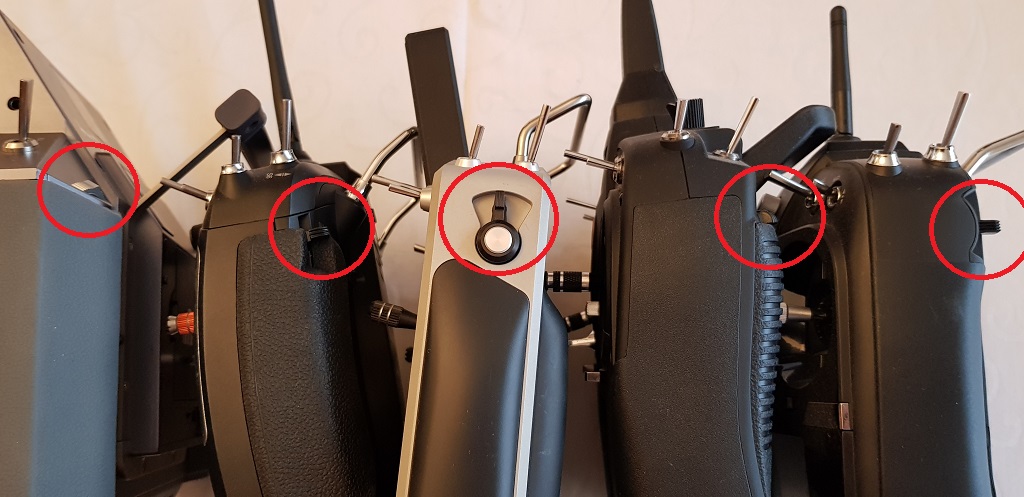

FINE TUNING BY DIALS / POTS

In addition to the control of the tail gain via a radio channel, ​It is possible to assign up to other three parameters to transmitter dials or potentiometers and fine tuning the assigned parameter during flight. Then you can land and set the new value as new default value with a simple movement of transmitter sticks.

Brain2 Dials image

COMPONENTS TIMERS

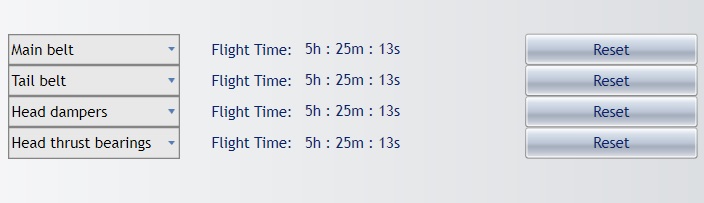

It is possible to assign different components up to other dedicated 4 timers  (other than the main timer) to monitor their consumption and wear and evaluate when it is time to replace them and reset the relevant timer.

Brain2 Component Timers image

7 OUTPUTS

In addition to the output for Throttle, Tail and three outputs for the Swashplate, a sixth and seventh output allows the control of 4 servos swashplate or tandem rotors together​ glow plug ignition control or retractable landing gear control or control of lights, or smoke control, or buzer activation, or winch control, etc.

MANY, MANY, MANY OTHER FUCTIONS INCLUDED

Proactive Governor for electric and Nitro/gasser (rotor speed control range: 800-6500 RPM), Autorotation Bailout for electric and Nitro/gasser, Automatic Pyro Compensation, Tail Motor Driven, 4 servo H-4 swashplate, Tandem Rotors heli, Fast servos for swashplate, Flybarred heli, More than 2 blades head, Cyclic Ring, Swashplate Phasing, Infinite modes of Auto Level operation by fine adjustments of Auto Level gain and maximum stabilization angle, Infinite modes of Rescue operation by fine adjustments of pitch increment and duration, Throttle idle fail safe value for Nitro/gasser, Linearization of not linear servos (rotating servos) by servo exponentials, Automatic resetting of any drift of stick potentiometers, Tail drag compensation, Pitch Pump, A second loggable RPM input (Tail motor, etc.), External loggable PWM input, External Altimeter input, Pitch Expo (Lightening), Tail Dynamic for belt or torque tube, Quality Of Signal Analysis, Min V to go, Two Auxiliary Output (Aux1/Aux2), Max mAh used and RPM reduction for system without telemetry, Auto diagnosis, Support Request via software, etc. etc.

Brain2 Governor
Brain2 Tail Motor Driven

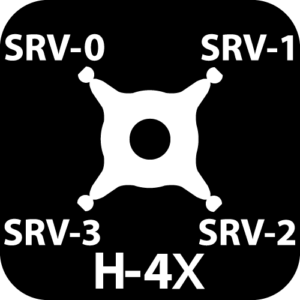

Brain2 4 servo swash

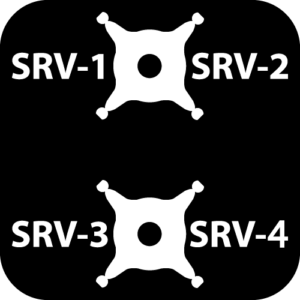

Brain2 Tandem Rotors
Brain2 Fast servos for Cyclic
Brain2 for flybarred models
Brain2 with more blades
Brain2 rescue
