23/03/2020 2:46 pm

Dear all.

I am trying to properly setup my new Brain-2. My helicopter is an old flybared Thunder Tiger 550e Raptor. My swash plate is an H-2 type (non referred into wizard) and I cannot make it work properly. H-2 plate is a 90º plate with a nose pointing horn, a tail pointing horn (but this one not attached to any servo), a right pointing horn and a left pointing horn. Nose horn controls elevator using one servo. Right and left horns control ailerons using both right and left servos at once. For pitch all tree servos work together. Could you help? I don't know what offered swashplates to choose (H-1, H3 or H4) because I cannot find H-2. As well I am not sure where to connect each servo to the brain.

Thank you


Quote
BrainDev
(@customercare)
Member Admin
Joined: 2 years ago
Posts: 453
24/03/2020 4:24 pm

Are you sure you have respected the servo1, servo2 and servo3 connections in the right SRV1, SRV2, SRV3 connectors of the unit?

Can you send the current configuration file of the controller by downloading it via the first item "Save setup to file ..." in the File menu?
Also a picture where you can see the swashplate, the servos and the position of the control unit on the model would be useful.

Thanks.


ReplyQuote
Acrow
(@russellr150)
Active Member Customer
Joined: 9 months ago
Posts: 5
26/03/2020 1:08 am
Posted by: @palicio

...

My swash plate is an H-2 type (non referred into wizard) and I cannot make it work properly. H-2 plate is a 90º plate with a nose pointing horn, a tail pointing horn (but this one not attached to any servo), a right pointing horn and a left pointing horn. Nose horn controls elevator using one servo. Right and left horns control ailerons using both right and left servos at once. For pitch all tree servos work together. Could you help? I don't know what offered swashplates to choose (H-1, H3 or H4) because I cannot find H-2. As well I am not sure where to connect each servo to the brain.

Thank you

At step 6 in the wizard, select swashplate H-3 120 then go to Advanced Menu -> Common -> CCPM.  Change servo 2 angle to 90 degrees and servo 3 angle to -90 degrees.  Then go back to the wizard and continue setup from step 7.




ReplyQuote
BrainDev
(@customercare)
Member Admin
Joined: 2 years ago
Posts: 453
27/03/2020 12:26 pm

Could you tell us make and model of your heli RC?
Could you give us a link to download the manual from?
(alternatively you can upload the manual here if it is in a known format).
Thanks.


ReplyQuote
palicio
(@palicio)
Active Member Customer
Joined: 9 months ago
Posts: 3
30/03/2020 1:35 pm

@russellr150 Thank you all. This is what I've done (actually before reading your reply so I've really solved it by myself: I feel good) and now it works perfect. Despite of my swash-plate is an H-2 Type, I've selected H-3 type swashplate and advanced both two rear servo acting points from 120º to 90º and 270º (-90º).

Thank you for your kind replies anyway


BrainDev liked
ReplyQuote
palicio
(@palicio)
Active Member Customer
Joined: 9 months ago
Posts: 3
30/03/2020 6:17 pm

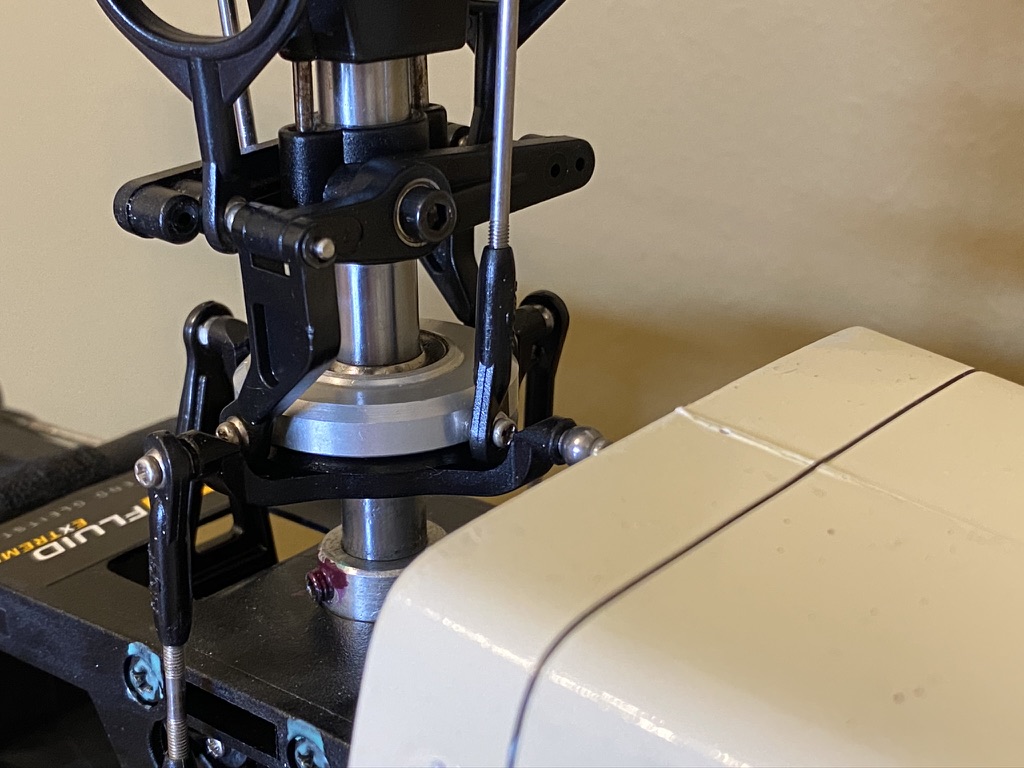

81549AE1 518E 4DA4 B47D 95F2E9EB2A0B 1 105 c

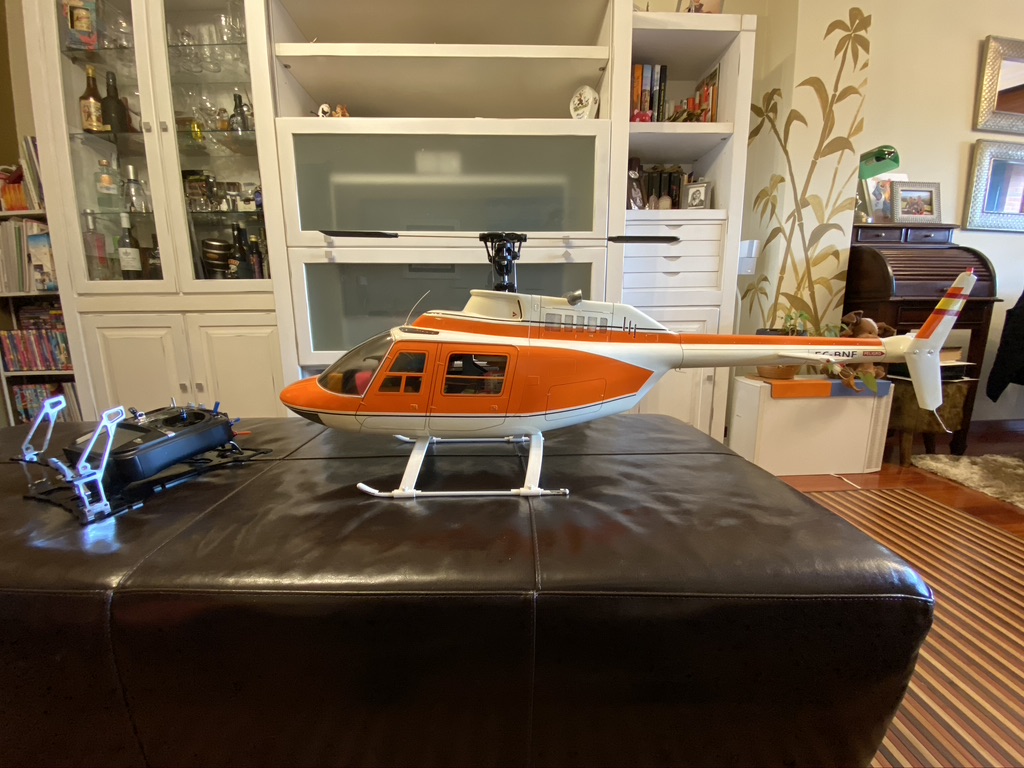

EACF0816 774B 42FF B7C2 06EB2A707A7F 1 105 c
